CGA320 female to W21.8 male CO2 cylinder adapter valve

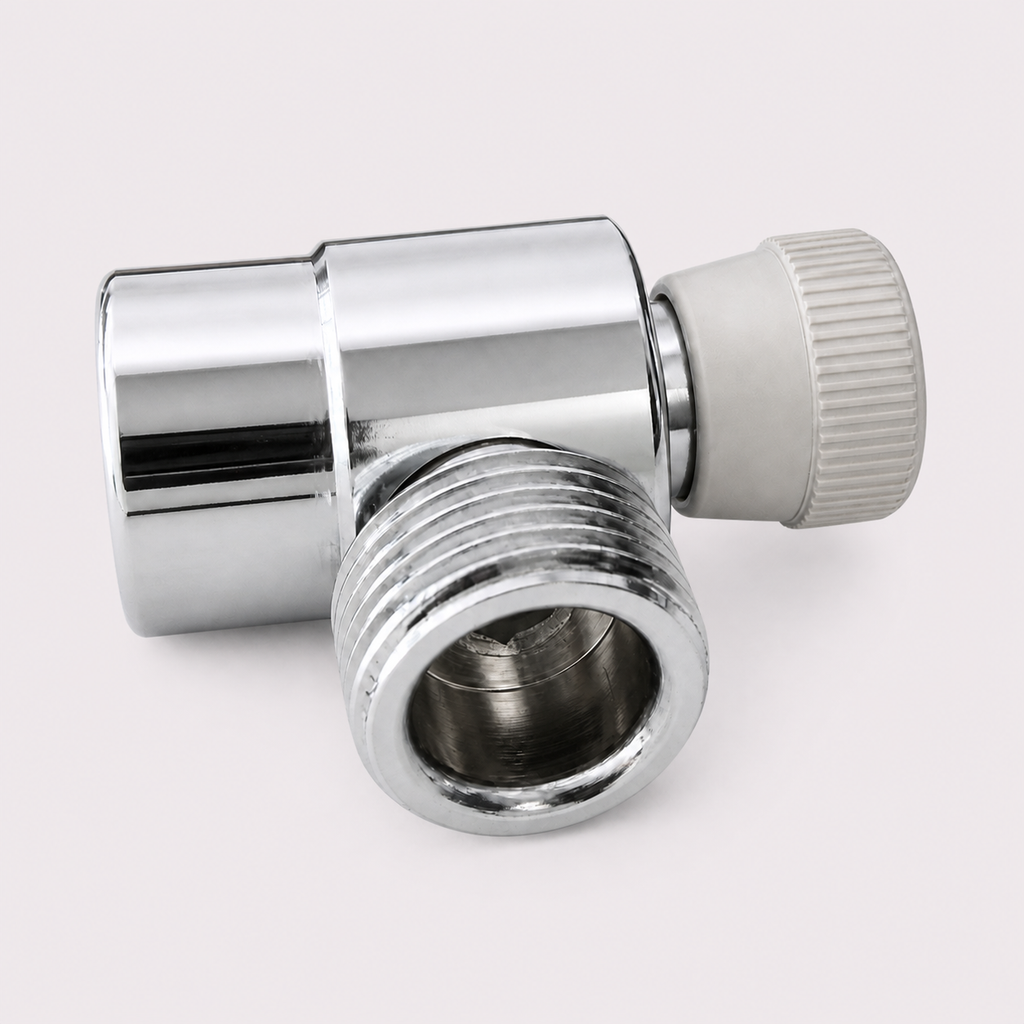

CGA320 Female to W21.8-14 Male CO₂ Cylinder Adapter Valve

$26.80 USD
Zahlungsmethoden
  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Discover

Estimated Shipping Widget will be displayed here!

Product Details

View Installation Guide

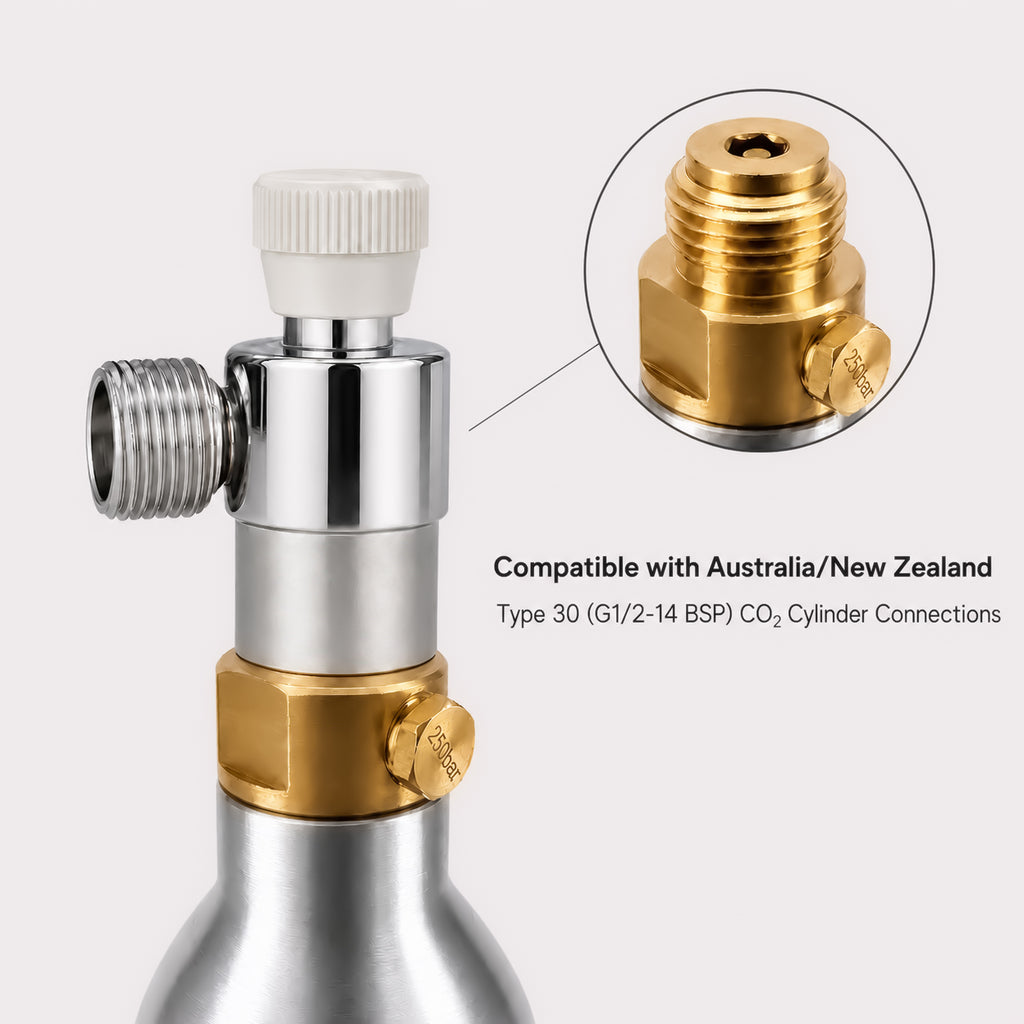

G1/2 (Type 30) CO₂ Cylinder to W21.8-14 Regulator Adapter

This solid brass adapter is designed to connect G1/2 (Type 30) CO₂ cylinders, commonly used in Australia and New Zealand, to regulators or equipment with a W21.8-14 male connection.

The W21.8-14 thread is commonly associated with DIN 477 No. 6 / BS 341 No. 8 CO₂ connections. An integrated adjustment knob allows the inlet valve pin length to be adjusted for proper engagement with the cylinder valve. Precision-machined threads and replaceable sealing gaskets help provide a secure and reliable connection.

Specifications

  • Cylinder-Side Connection: G1/2 BSP Female (Type 30)
  • Equipment-Side Connection: W21.8-14 Male or G1/2 Male, depending on selected option
  • W21.8 Standard Reference: DIN 477 No. 6 / BS 341 No. 8
  • Material: Solid Brass
  • Finish: Polished Brass
  • Valve Pin: Adjustable inlet pin controlled by the top knob
  • Application: CO₂ cylinder-to-regulator thread conversion and gas refilling.

Note: Colors may vary slightly due to lighting and monitor differences.

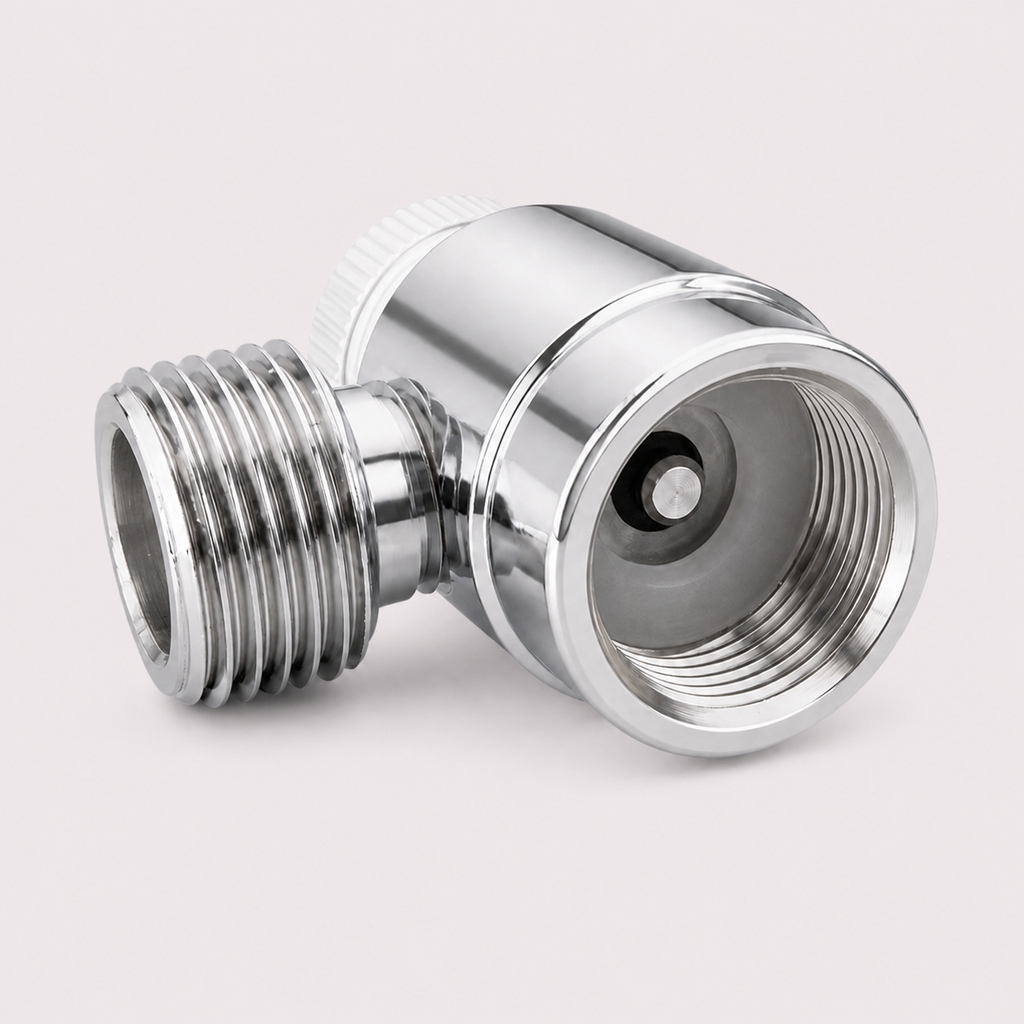

Adjustable Valve Pin

The top adjustment knob controls the extension of the inlet valve pin, allowing it to match compatible cylinder valve heights and open the cylinder valve after the adapter and connected equipment are securely installed.

Package Includes

  1. 1 × CO₂ Cylinder Adapter
  2. 4 × Replacement Silicone Gaskets

Installation Instructions

  1. Turn the adjustment knob counterclockwise to fully retract the valve pin.
  2. Screw the adapter onto the G1/2 (Type 30) CO₂ cylinder and tighten securely by hand.
  3. Connect the compatible regulator or equipment to the adapter.
  4. Slowly turn the adjustment knob clockwise until the valve pin engages the cylinder valve and gas begins to flow.
  5. Check all connections for leaks before normal use.

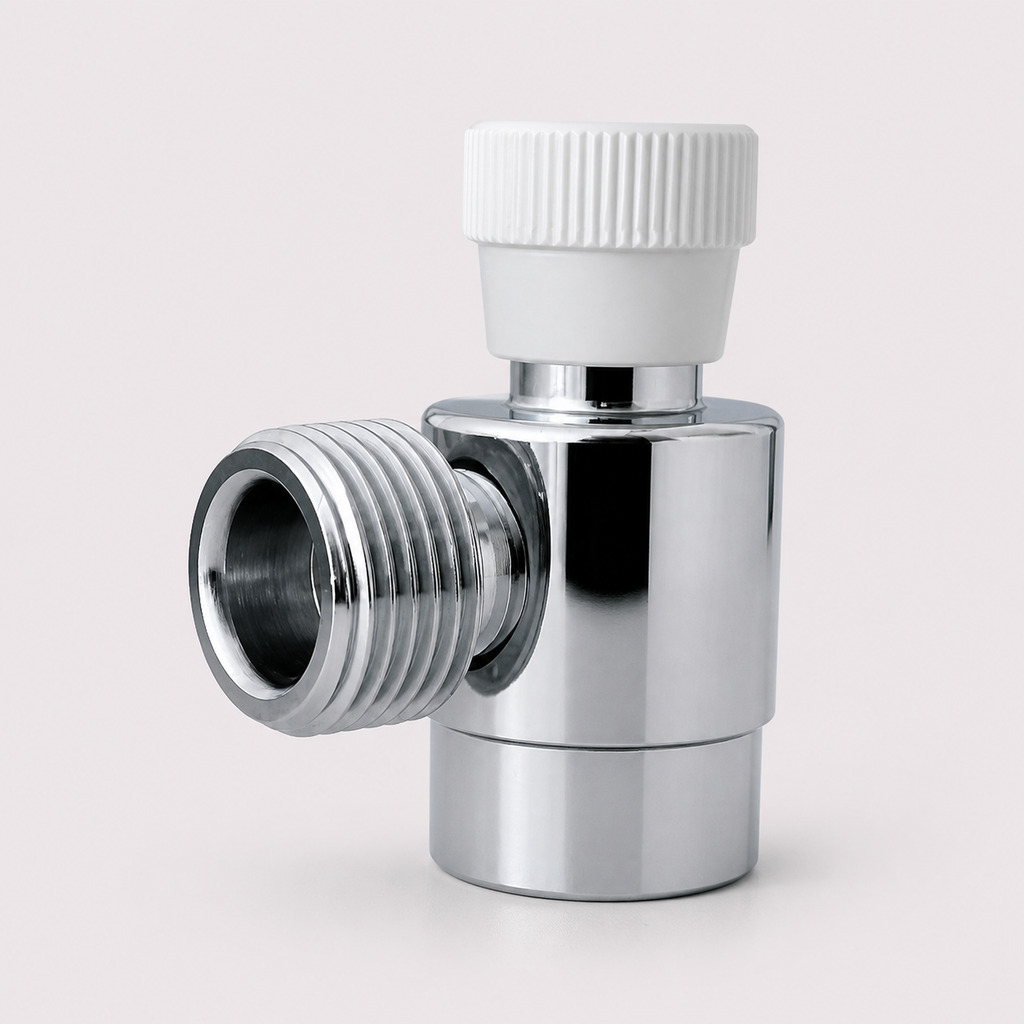

Brass CGA320 to W21.8 CO2 adapter with control knob

About Piherk

At Piherk, we specialize in gas equipment solutions that combine functionality with durability. With our professional brand TYLEE®, we’re committed to delivering products that are practical, reliable, and crafted to solve real-world needs.

" Reliable Quality, Professional Solutions. "

When will I get my order?

We’ll ship your order as soon as possible.

Once shipped, you’ll receive a confirmation email with tracking details.

Orders ship within 3–5 business days after payment.

Delivery takes 7–20 business days depending on your location.

Guarantee

Change your mind? Return within 30 days.

Free Shipping

Enjoy free shipping when you spend $79 or more.

Q1-When should the sealing ring be replaced?

Replacement is recommended in the following cases:

  • When it shows visible wear, aging, or hardening;
  • If you notice air leakage during use;
  • As a general guideline, inspect it every 6–12 months depending on usage frequency.
Q2-Do I need tools to install the pressure regulator?

No tools are required. Our regulators use a soft-seal structure, so you can simply tighten them by hand. Using a wrench or other tools may over-compress the sealing ring and cause leakage.

Q3-How to choose the right thread for CO₂ cylinders?

Cylinder thread specifications vary by country, region, and application. Common CO₂ cylinder threads include:

  • CGA320 – Commonly used in USA and Canada for industrial CO₂ cylinders. In Australia, this thread is also commonly used for soda maker cylinders.
  • W21.8 – Common in Europe and the UK; sometimes referred to as BS341 No.6 / DIN477-6.
  • G5/8 – Common in China and other parts of Asia.
  • Tr21×4 – Often used in home soda makers.
  • JIS M22-18 – Common in Japan and Korea, similar in size to W21.8 but not directly interchangeable.

Important Notes:

  • Thread standards differ by application: industrial CO₂ cylinders vs. home soda machines.
  • W21.8 and JIS M22-18 threads are similar but cannot be used interchangeably; always verify the cylinder thread before use.
  • Always check your cylinder and device specifications to ensure compatibility.
Q4-How do I clean the regulator?

Wipe the exterior with a dry or slightly damp cloth. Do not immerse in water or use harsh chemicals.

Q5-Will there be any color difference between the product photos and the actual item?

All products are photographed from actual items without excessive rendering, aiming to show the true appearance and surface finish. Due to lighting and display variations, there may be slight color differences between the photos and the actual items. In addition, metal products may have minor scratches or imperfections. Please understand and take this into consideration before placing your order.
